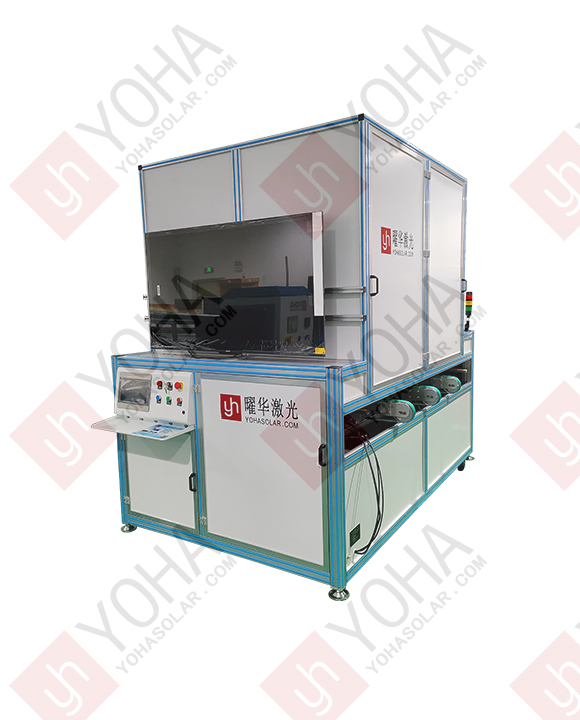

 EL Testing Machine

The Automatic Post-Lamination Solar Module EL Tester is designed for non-destructive electroluminescence (EL) inspection of photovoltaic modules after the lamination process. Featuring an innovative top-down imaging structure, the system captures near-infrared luminescence images directly from above the module, eliminating the need for module flipping and simplifying the inspection process.

By applying a controlled forward-bias current to the solar module, the high-sensitivity imaging system detects faint electroluminescence signals emitted by the solar cells, enabling clear visualization and identification of internal defects. These include micro-cracks, broken cells, interrupted fingers, black cores, black spots, sintering defects, process contamination, and potential-induced degradation (PID). It provides an efficient and reliable inspection solution for evaluating solar module quality, identifying hidden defects, and improving production quality control.


Product Features

Features

1. Non-Destructive EL Inspection

Based on the electroluminescence (EL) principle, the system applies a controlled forward-bias current to photovoltaic modules, causing the solar cells to emit near-infrared light. A high-sensitivity infrared camera captures EL images to reveal internal defects that cannot be easily identified through conventional visual inspection.

This enables non-destructive quality inspection of solar modules, particularly after the lamination process, helping manufacturers identify hidden defects without damaging the modules.

2. Top-Down Imaging – No Module Flipping Required

Featuring a top-down imaging structure, the camera is positioned directly above the solar module to capture EL images without requiring the module to be flipped.

This design simplifies the inspection process, reduces unnecessary material handling, minimizes the risk of mechanical damage, and improves operational efficiency. It is also suitable for integration into photovoltaic module production lines, providing greater flexibility for automated inspection processes.

3. High-Resolution Imaging and Precise Defect Detection

Equipped with a high-resolution infrared camera and precision optical lenses, the system captures clear and detailed EL images for accurate identification of various internal defects, including micro-cracks, broken cells, interrupted fingers, black cores, black spots, sintering defects, and process contamination.

It also supports the identification of potential-induced degradation (PID) and other cell performance abnormalities through EL image analysis, helping manufacturers improve module quality and production consistency.

4. Automated Image Processing and Defect Analysis

The integrated image processing software automatically analyzes captured EL images, identifies and classifies defects, and marks their locations for convenient inspection and evaluation.

The system can generate inspection reports to support defect tracking, quality assessment, and production data management. This reduces reliance on manual image interpretation and helps standardize the inspection process.

5. Online Inspection and Production Line Integration

Designed for integration into photovoltaic module production lines, the online EL testing machine can perform EL inspections at designated production stages, particularly after lamination and before final module packaging.

Its online inspection capability helps reduce manual handling and unnecessary module transfers while enabling manufacturers to monitor product quality more efficiently. The system can be configured to work with production line conveying and handling systems according to the actual factory layout and automation requirements.

6. Improved Quality Control and Production Efficiency

By detecting hidden defects before finished modules are shipped, the system helps manufacturers strengthen quality control and reduce the risk of defective products reaching customers.

Inspection results also provide valuable feedback for analyzing potential issues in solar cells, stringing, and lamination processes. Combining automated image analysis with efficient production line integration, the system helps improve inspection efficiency, product consistency, and overall manufacturing quality.

Technical Specifications

Model YHEL-S2400
Applicable Process
Defect detection for pre/post-lamination modules
Test TypePERC, TOPCon, HJT, BC and Other Crystalline Silicon PV Modules
Camera
YOHA dedicated camera
ResolutionEL: 24 Megapixel / 60 Megapixel
Imaging ModeSingle/Multi-camera mode
SensitivityDetects cracks with width less than 0.03mm
Effective Test Area2600*1500mm
Stabilized Power Supply60V/20A
Image Capture Time1~60s (Adjustable)
Power Supply220V/50HZ
Device Dimensions2900×1940×1155mm

Product Applications

1. Integrated PV Module Production Line Inspection

Designed for direct integration into photovoltaic module production lines, the Online EL Testing Machine performs automated EL inspection at designated production stages, particularly after lamination and before final packaging. It can be integrated with production line conveying and handling systems to enable continuous online inspection without unnecessary manual transfer or module flipping.

The system quickly identifies internal defects such as cell micro-cracks, broken cells, interrupted fingers, poor soldering, black cores, black edges, and process contamination. Inspection results provide timely quality feedback, helping manufacturers monitor production quality, identify process issues, and improve overall manufacturing efficiency and product consistency.

2. Laboratory R&D and Process Optimization

Used in R&D laboratories to evaluate the effects of new materials, manufacturing processes, and module structures on photovoltaic module quality and reliability. By comparing EL images from different cell technologies, soldering methods, and encapsulation materials, manufacturers can identify potential defects, analyze process variations, and obtain valuable data for product development and process optimization.

3. Pre-Installation PV Module Inspection

Used for sampling or full inspection of photovoltaic modules delivered to project sites before installation. EL testing helps identify internal damage, including micro-cracks, broken cells, and soldering defects that may occur during transportation, storage, or handling. This helps verify module quality, reduce installation risks, and ensure that delivered products meet project specifications and contractual requirements.

4. PV Power Plant O&M and Fault Diagnosis

Applied in periodic inspections and fault diagnosis of operational photovoltaic power plants. EL testing can help identify internal defects and degradation, such as micro-crack propagation, cell damage, soldering degradation, and PID-related abnormalities. By locating defective modules, inspection results provide technical support for maintenance, module replacement, and power plant performance assessment, helping improve operational reliability and long-term power generation performance.
