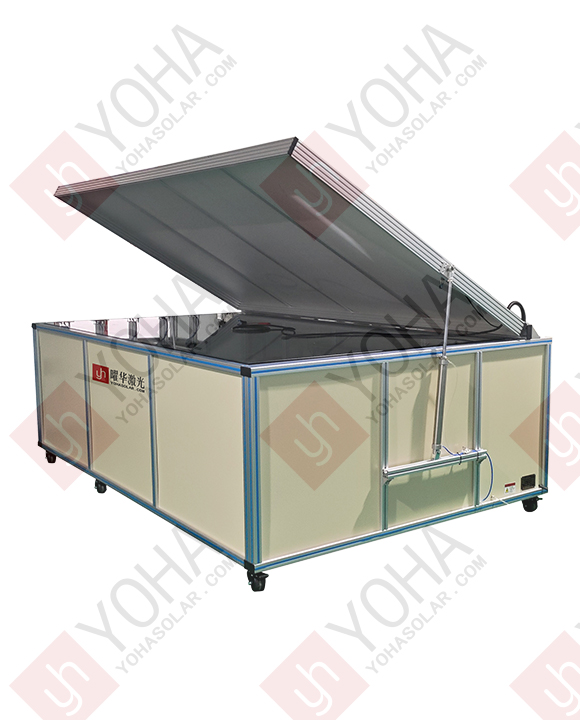

Solar Panel EL Tester

The Solar Module EL Defect Detector is an advanced electroluminescence (EL) testing machine designed for solar panel inspection and photovoltaic (PV) module quality control. It uses EL imaging technology to detect internal defects in solar modules through non-destructive testing, helping manufacturers maintain product quality throughout the production process.

During inspection, a controlled electrical current is applied to the solar module in a darkroom or light-controlled environment, causing the solar cells to emit near-infrared light. A high-sensitivity infrared camera captures the resulting EL images, revealing internal defects that may not be visible through conventional visual inspection.

The system helps identify and analyze various solar cell and module defects, including micro-cracks, broken cells, interrupted grid lines, poor soldering, black core cells, and material inhomogeneity. Through clear defect visualization and image analysis, this solar panel EL testing machine supports quality inspection, defect identification, and manufacturing process control in PV module production facilities.


Product Features

1. EL Imaging Technology: Non-Destructive Defect Detection

Based on electroluminescence (EL) imaging technology, the system applies a controlled electrical current to solar modules to reveal internal cell structures and hidden defects. Using infrared imaging, it enables non-destructive inspection without damaging or disassembling the module, providing clear visual information for solar module quality assessment.

2. Automated Inspection: Intelligent Defect Recognition

Equipped with a high-sensitivity infrared camera and professional image processing software, the Solar Module EL Defect Detector captures EL images and supports automated defect identification, localization, and classification. It helps detect various defects, including micro-cracks, broken cells, interrupted grid lines, poor soldering, and black core cells, improving inspection efficiency and consistency.

3. High-Resolution EL Imaging: Accurate Defect Localization

The system combines high-resolution infrared imaging with a controlled darkroom environment to produce clear EL images with good contrast. This allows operators to identify subtle cell abnormalities, fine micro-cracks, and interrupted grid lines, helping locate defects accurately and supporting reliable quality inspection.

4. Production Quality Control: Improved Manufacturing Yield

Designed for photovoltaic (PV) module manufacturing, the equipment supports quality inspection at multiple production stages, including incoming material inspection, in-process quality control, and finished solar module testing. By identifying internal defects before products reach subsequent production stages or final shipment, it helps manufacturers reduce quality risks, minimize production losses, and improve overall product quality and manufacturing yield.

Technical Parameters

Model
YHEL-2400
Applicable Process Pre- & Post-Lamination Inspection
Module Type

TOPCon、HJT、BC、PERC、BIPV
 Module

Camera Type
YOHA  Dedicated Camera
Image Resolution
EL 24/ 48 Million  Pixels
Shooting Mode
Single/Dual Camera Mode
Sensitvity
Capable of Detecting Cracks Less than 0.03mm wide
Effective Testing area
2600*1500
Stabilized Power Supply
60v/20A
Image Acquisition Time
1-60S Adjustable
Power Supply
220v/50hz
Equipment Dimensions
2900*1940*1155mm

Product Applications

1. PV Module Manufacturing Line Quality Inspection

Designed for integration into PV module production lines as a key quality inspection system. It can be used at critical production stages, including incoming solar cell inspection, post-stringing and layup inspection, pre- and post-lamination inspection, and final module quality inspection. By detecting hidden defects such as micro-cracks, broken cells, and soldering defects, the system helps manufacturers identify quality issues early, reduce defective products, improve production yield, and ensure consistent module quality.

2. Complete PV Module Production Line Supporting Equipment

Suitable as supporting inspection equipment for new PV module manufacturing lines, production line expansion projects, and existing factory upgrades. The EL testing system can be integrated into different production stages according to the production line layout and inspection requirements. It provides manufacturers with essential quality inspection capabilities, helping establish a complete production quality control system and improve overall manufacturing reliability.

3. PV Power Plant Module Receiving Inspection & Installation Quality Check

Used during PV power plant construction for batch sampling or full inspection of incoming solar modules to identify internal damage, such as micro-cracks, caused by transportation or handling. It can also perform re-inspection after module installation to check for damage caused by handling, mounting, or installation stress, helping ensure module quality before power plant commissioning.

4. PV Power Plant O&M Fault Diagnosis & Performance Assessment

An important diagnostic tool for solar power plant operation and maintenance. It is used for routine inspections and troubleshooting when abnormal power output or performance degradation occurs. EL testing helps identify internal defects such as micro-cracks, broken cells, PID-related degradation, cell failures, and soldering defects, supporting maintenance decisions, module replacement, and long-term power plant performance management.

5. PV Module R&D & Manufacturing Process Improvement

Suitable for R&D laboratories, solar module manufacturers, and process development departments. The EL tester helps evaluate new cell technologies, module structures, materials, and manufacturing processes. By comparing EL images under different conditions, engineers can analyze defect distribution and formation mechanisms, providing valuable data for process optimization, product reliability improvement, and module design development.
