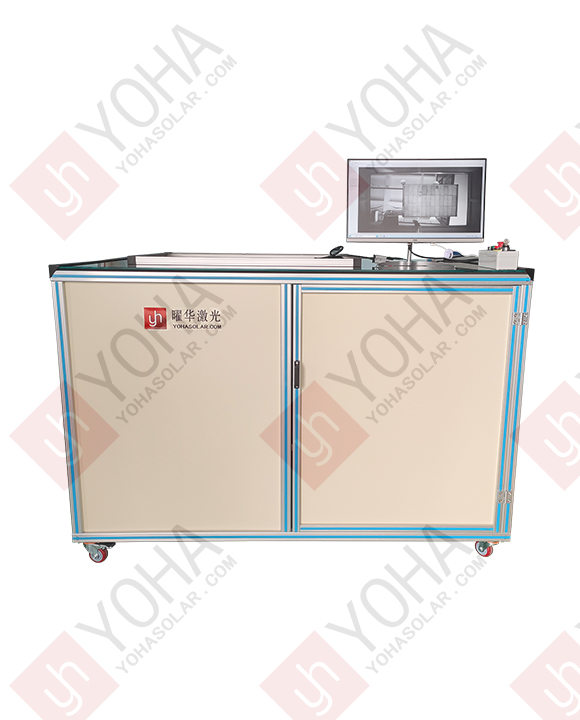

BIPV solar panel EL tester

The Small BIPV Solar Panel EL Tester is a specialized inspection device designed for small-size building-integrated photovoltaic (BIPV) modules. Based on electroluminescence (EL) imaging technology, it uses a high-resolution imaging system to perform fast, non-contact, and non-destructive inspections of solar modules.

The system detects internal defects such as micro-cracks, broken fingers, cell breakage, black spots, low-efficiency cells, shunting defects, and soldering defects. It helps BIPV manufacturers identify potential quality issues, improve inspection efficiency, and ensure the performance and reliability of small photovoltaic modules.


Product Features

1. EL Non-Destructive Imaging Technology

Based on the electroluminescence (EL) principle, the system captures internal images of energized photovoltaic modules to reveal hidden defects in solar cells. It enables non-contact, non-destructive inspection without dismantling or damaging the modules, making it suitable for quality inspection of small-size BIPV modules.

2. High-Resolution Imaging and Defect Visualization

Equipped with a high-sensitivity infrared camera and a dedicated imaging system, the tester captures clear EL images with excellent detail and contrast. Combined with a controlled darkroom environment, it helps reveal internal defects such as micro-cracks, broken fingers, cell fragments, and poor soldering, allowing accurate defect positioning and visual assessment.

3. Intelligent Defect Recognition and Analysis

Integrated image processing software automatically analyzes captured EL images to identify, locate, and classify common cell and module defects. These include micro-cracks, broken fingers, cell fragments, poor soldering, and other potential manufacturing defects. This intelligent analysis reduces manual inspection efforts and improves detection efficiency and consistency.

4. Comprehensive Quality Inspection and Reliability Control

Designed for different stages of BIPV module quality inspection, the system supports incoming material inspection, production process monitoring, and finished module quality testing. By identifying potential defects before products leave the factory, it helps manufacturers reduce quality risks, improve product yield, and ensure the long-term performance and reliability of small photovoltaic modules.

5. Flexible Compatibility: Adaptable to Different BIPV Panel Sizes

Designed with a flexible inspection structure, the system accommodates BIPV panels of different sizes and specifications. Its adaptable inspection platform allows convenient adjustment to different panel dimensions, providing greater flexibility for manufacturers producing various types of small-size photovoltaic modules. This design enables one testing system to serve multiple BIPV product specifications, improving equipment versatility and production adaptability.


Technical Specifications

Model
YHEL-1590
Applicable ProcessPre&Post Lamination
Module Type BIPV/TOPCON/BC/HJT/
Camera Type YOHA Dedicated Camera
Resolution
5MP/24MP
Imaging ModelSingle Camera Model
Crack  Detection Sensitivity Crack Detection Width: < 0.03 mm
Stabilized Power  Supply
60V/10A
Testing Area 1500*900mm
Image Acquisition Time 1-60s Adjustable
Machine Dimension
Customized to Panel Size

Product Applications

1. BIPV Module Manufacturing Quality Inspection

Used in BIPV module manufacturing for quality inspection at different production stages, including incoming cell inspection, post-soldering and layup inspection, pre- and post-lamination inspection, and finished module testing. EL imaging helps identify internal defects such as micro-cracks, broken fingers, and cell damage, allowing manufacturers to detect quality issues early and reduce defective products.

2. BIPV Module Incoming and Finished Product Inspection

Suitable for incoming quality inspection of BIPV modules and final product acceptance testing. The system helps identify internal defects that may affect module quality and performance, including defects caused during manufacturing, handling, or transportation. It provides visual inspection results to support product quality assessment before installation or delivery.

3. BIPV Module Installation and Maintenance Inspection

EL testing can be used to inspect BIPV modules after transportation, handling, and installation to identify potential internal damage. It can also support maintenance inspections when module performance abnormalities are suspected, helping locate cell cracks, broken cells, and other internal defects for further evaluation.

4. BIPV Product R&D and Process Development

Suitable for BIPV product development laboratories and manufacturing process improvement. By comparing EL images of modules produced with different cell technologies, materials, and manufacturing processes, engineers can evaluate internal defect conditions and identify potential quality issues. The inspection results support product development, process optimization, and reliability improvement
