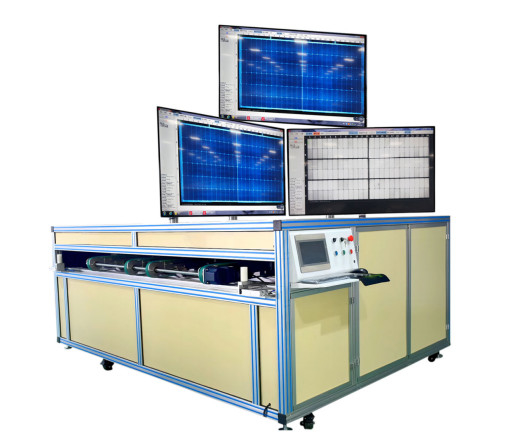

Automatic Solar Module EL and AOI Appearance Tester -- YH-EL12
Technical specifications:
Applications:

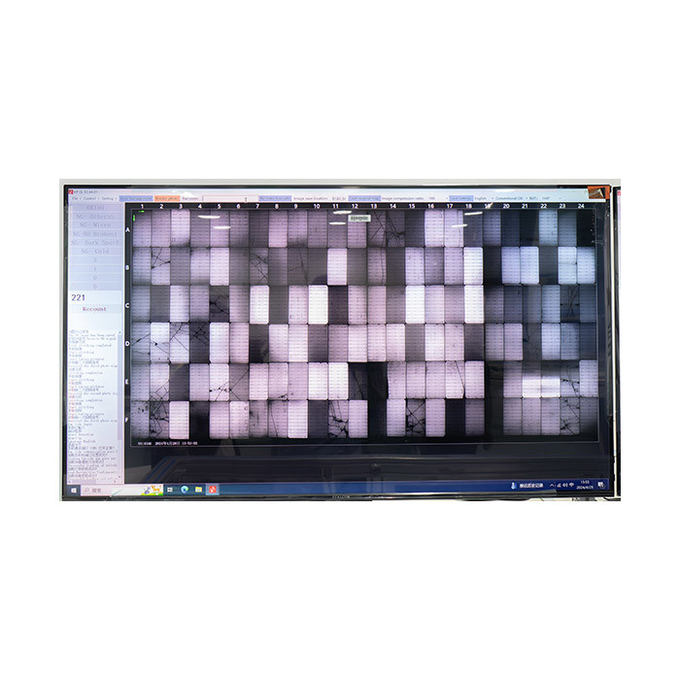

The EL detection system consists of 4 near-infrared cameras (high quality 0.4mm/pixel), while the appearance AOI detection system comprises another 8 visible light cameras (high quality 0.09mm/pixel). These cameras respectively capture EL infrared images and visible light images, ensuring comprehensive detection across both imaging spectra. By utilizing multi-station image acquisition and multi-camera image stitching, the system generates complete EL and visible images of the solar panel. This method guarantees high imaging quality and a small window feature for viewing detailed sections, which is essential for accurately identifying both EL defects and appearance defects on solar panels. The EL detection and AOI appearance detection of PV panels can function either as independent detection systems or be integrated into a single combined detection system, offering flexibility depending on the inspection needs.
Specifications:
| Specification | Details | | Test Items | Various types of solar panels | | Maximum Field of Vision | 2600mm x 1500mm | | EL Defect Types | Hidden crack, broken grid, black center, black spot, dark film, debris, etc. | | AOI Appearance Defects | Foreign matter, damage, exposed white, color difference, etc. | | Detection Efficiency | Detection time of a single panel: approximately 20.0 seconds | | Network Communication | Communication between network port and PLC can be integrated with the production line. | | Program Controlled EL Power Supply | Power parameters can be adjusted through the program. | | Flexible Formula Type | Compatible with various product models. | | Database Function | Test results can be saved and queried. | | Software Interface | Features small window for detailed view; user-friendly and easy to operate. | | EL Detection System | Consists of four near-infrared industrial cameras, four high-definition lenses, filters, and detection software. | | Appearance Inspection System | Includes four visible light cameras, four high-definition lenses, light sources, filters, and inspection software. |
Features:
| Feature | Description
| | Special Light Source and Image Acquisition System | Provides stable and high-quality images.
| | Sony CCD Chips | Equipped with high-quality Sony CCD chips for superior image clarity. | | Image Mosaic | Accurate image mosaic without obvious dislocation. | | High Detection Efficiency | Ensures high detection efficiency and is easy to integrate with the production line. | | Intelligent Image Processing Algorithm | Utilizes an intelligent image processing algorithm for stable and reliable detection results. | | Compatibility with Various Products | Compatible with a variety of products and models, effectively reducing enterprise costs. |
|
