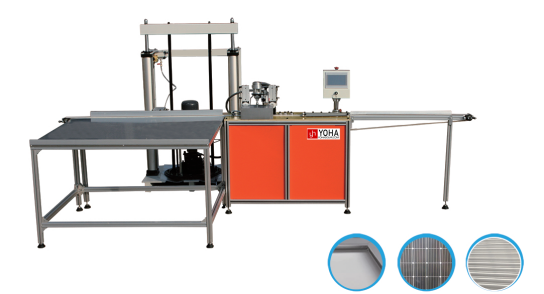

Automatic Frame Glue Dispensing Machine
Model: YHGD-01
l CNC system automatic control, manual feeding, automatic cutting, automatic clamping, automatic gluing, gluing process
l without artificial support frame.
l Glue evenly, stable and full, no need to add glue twice after the frame, save labor, save time and save glue.
l Glue speed and transmission speed computer stepless speed regulation, simple and convenient operation
Specification:
Working Speed: 6-26M/S ≤32s per full set Frame
Max.Length :2200mm
Min.Length: 270mm(ultra-short customized)
Max.Width: 55mm
Min.Width:17mm
Glass Groove Depth: 8-15mm
Power supply: 220V 50Hz
Equipment power: X-axis 200W, total power 2200W
Air source: pressure 0.5-0.6 Mpa
Glue barrel inner diameter : about 565～571mm
Environmental Temperature：0℃~40℃
Environmental humidity: <95%

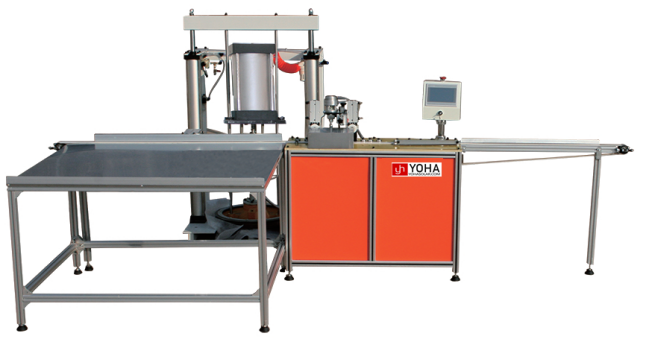

Automatic Frame Glue Dispensing Machine
Model: YHGD-02
l CNC system automatic control, manual feeding, automatic cutting, automatic clamping, automatic gluing, gluing process
l without artificial support frame.
l Glue evenly, stable and full, no need to add glue twice after the frame, save labor, save time and save glue.
l Glue speed and transmission speed computer stepless speed regulation, simple and convenient operation.
l Domestic pneumatic Glue supply system, stable performance, simple and convenient.
Specification:
Working Speed: 6-26M/S ≤32s per full set Frame
Max.Length :2600mm
Min.Length: 270mm(ultra-short customized)
Max.Width: 55mm
Min.Width:17mm
Glass Groove Depth: 8-15mm
Power supply: 220V 50Hz
Equipment power: X-axis 200W, total power 1100W
Air source: pressure 0.5-0.6 Mpa
Glue barrel inner diameter : about 565～571mm
Environmental Temperature：0℃~40℃
Environmental humidity: <95%
