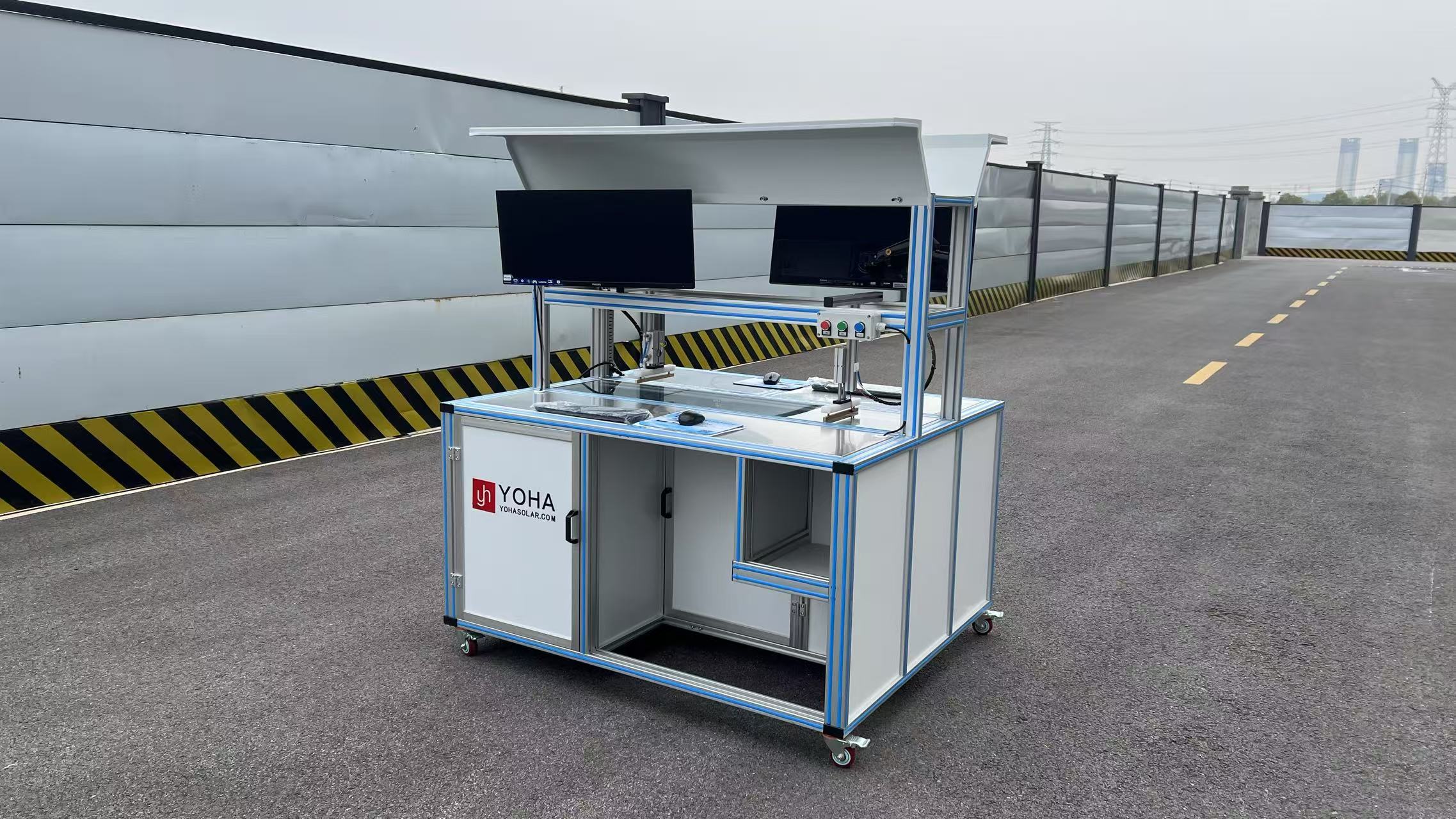

We're so excited to introduce our latest solar testing solutions, aiming at optimizing quality control in the solar panel production line. This news highlights the advanced features of the Solar String EL Tester and Solar Module IV Tester—products engineered to bring precision and efficiency to every stage of production. | Items | Functions | | Defect Detection Types | The equipment should be capable of detecting at least the following types of defects: hidden cracks, black spots, misalignment, broken grids, cold solder joints, light/dark spots, bright spots, scratches, etc. | | Cell Types | Monocrystalline/Polycrystalline silicon solar cell string | | Efficiency | ≥99% | | Applicable String Specifications | String length: 1350*300mm | | Testing Cycle | Testing time ≤2 seconds, excluding loading and unloading time | | Camera | 4 Cameras | | Camera Resolution | 5 million pixel high-definition industrial camera; NIR industrial-grade lens; imaging time adjustable from 0.3~2 seconds | | Shutter Type | Electronic shutter, non-mechanical shutter | | Photographing Method | Direct illumination | | Power-On Method | Manual power-on | | Computer | a) Display system: 29-inch or larger 1080p monitor
b) Dedicated industrial computer host | | Management Software | EL image automatic shooting function; barcode scanning, manual input
Defect classification, automatic generation of date folders, saving function
Software filtering correction, image uniformity without background pattern | | Abnormal Rate (e.g., system crashes, camera connection issues, or software connection issues) | Less than 1/200,000 occurrences | | Testing Software | Image software automatically stitches images seamlessly, no hardware stitching
Automatic image capture and saving
Image save path is configurable
Image optimization parameters adjustable (time, gain, contrast, Gamma, BR Max/Min)
Software parameter modification permission settings
Main operation control interface, manual operation interface, parameter interface, etc. | | Detection Effect | EL defects (hidden cracks, black spots, misalignment, broken grids, cold solder joints, light/dark spots, bright spots, scratches, etc.)
Images can be displayed for operator judgment | | Electrode Module | Dual-module dual-position voltage block (manually placed on the lead line for testing) | | DC Power Supply Model | ZL6010 | | Testing Ampere | 0-60V | | Testing Voltage | 0-10A |

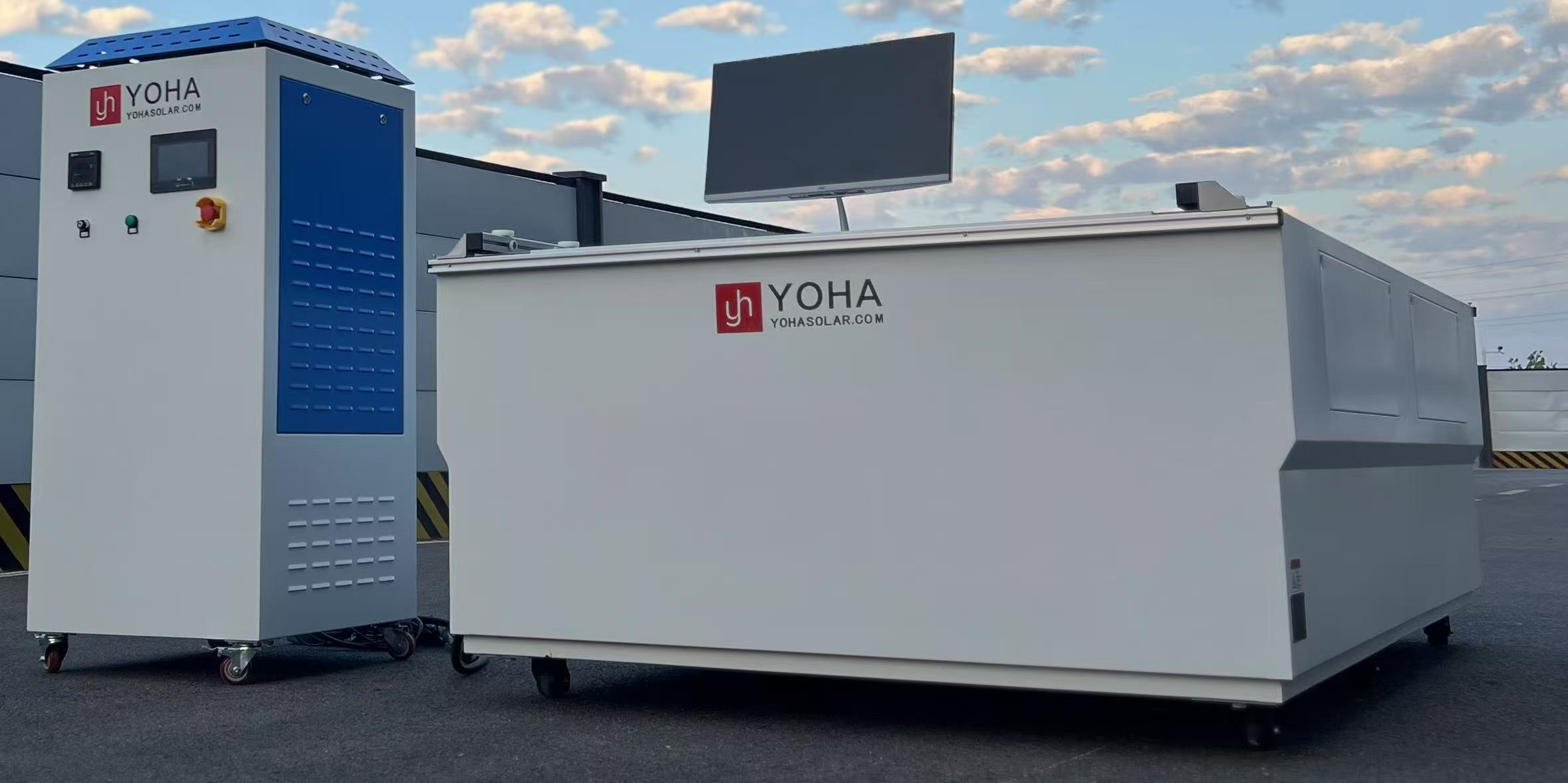

Solar Module IV Tester Primarily used for the automatic testing and result recording of monocrystalline silicon, polycrystalline silicon, and thin-film solar cell modules. This Solar IV Tester is an essential part of the solar panel production line, featuring an A+A+A+ Grade Sun Simulator for accurate I-V curve measurement, ensuring precise and reliable solar module testing.
| Model | YHPT-AAA | Feature | | Lamp Spectrum | In line with IEC60904-9:2007(A Grade) |
Measurable parameters: I-V curve measurement, short circuit current, open circuit voltage, peak power, peak power point voltage, current, fixed voltage current, fill factor, conversion efficiency, sun simulator light intensity, and environmental temperature, ensuring comprehensive solar module testing. Automatic classification and display function: The system can automatically classify solar modules based on fixed voltage and current parameters, with results directly displayed on the test cabinet through a digital display. This enhances usability and efficiency in the solar panel production line. Four-wire connection for high accuracy: Solar IV Tester adopts a four-wire measurement method, minimizing resistance errors and ensuring precise current measurements. Simultaneous temperature and light intensity measurement: By measuring both environmental temperature and A+A+A+ grade solar simulator light intensity in real-time, the system ensures highly accurate automatic correction for solar cell performance evaluation and make it an essential part of a solar panel production line. Self-tuning and compensation system: Features a self-tuning mechanism with manual input for compensation parameters, along with automatic/manual temperature compensation and automatic light intensity compensation, optimizing test accuracy across different operating conditions.
| | Light Intensity | 1000W/m²(700W/m²-1200W/m²) | | Light intensity non-uniformity | ≤±2%[AAA] | | Instability degree of irradiation | ≤±1%[AAA] | | Test results consistency | ≤±0.05%[AAA] | | Test error of electrical properties | ≤1% AAA | | Single flash time | 60ms 100ms 150ms(Optional) | | Effective Test Range | 2500mm×1400mm 2600*1500mm(Optional) | I-V Curve Measuring Voltage | 0-200V(Resolution 1mV) | I-V Curve Measuring current | 200mA-20A(Resolution 1mA) | | Environmental temperature | 15℃~30℃ | | Test Parameters | Isc, Voc,Pmax, Vm,Im,FF,EFF,Temp,Rs,Rsh | | power | 220V/50Hz(60Hz) |
These cutting-edge devices have already been dispatched to important markets worldwide, emphasizing Yoha Solar’s leadership in innovative solar technology.
|
