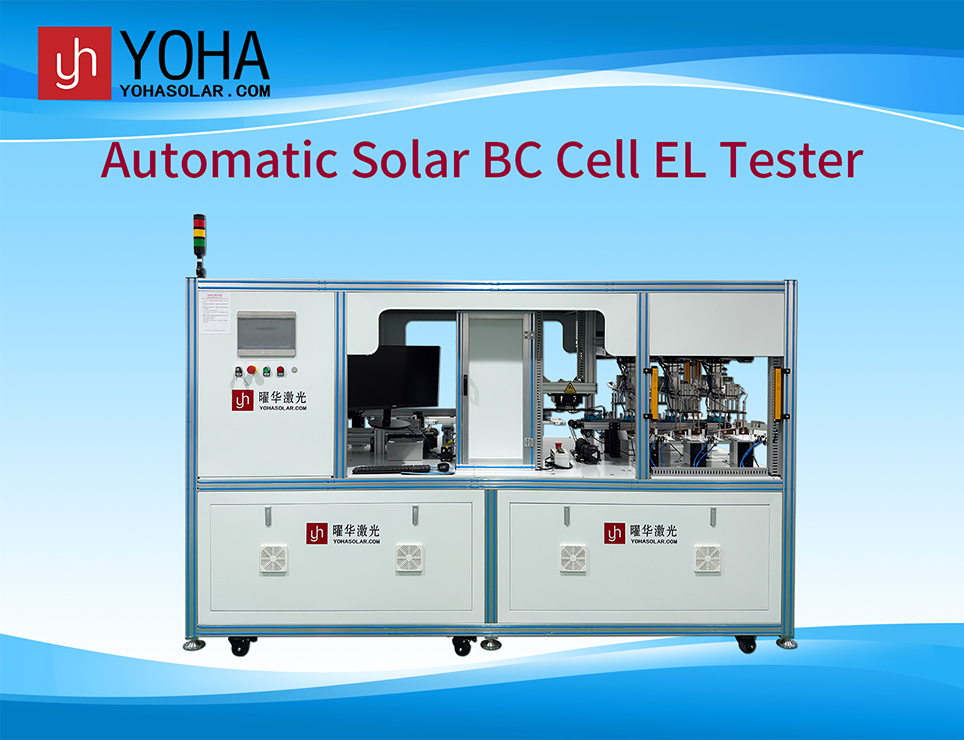

In the process of the photovoltaic industry moving toward higher efficiency and precision, back-contact (BC) cells have gradually become a market focus due to their high conversion efficiency and aesthetic appeal. However, their complex structure, which differs significantly from traditional cells, imposes higher requirements on sorting technology. As a core equipment, the BC cell sorting instrument utilizes photoelectrical parameters—particularly IV curve testing and electroluminescence (EL) imaging technology—to achieve precise efficiency grading of cells, making it a critical link in ensuring the quality and performance of BC cells.

IV Curve Testing: Accurate Quantification of Electrical Performance

The IV curve (current-voltage characteristic curve) is a core indicator for evaluating the performance of solar cells. The BC cell sorting instrument uses a high-precision light source to simulate the solar spectrum, applies a scanning voltage to the cell, measures the output current, and quickly plots a complete IV curve. This curve reveals key parameters such as open-circuit voltage (Voc), short-circuit current (Isc), maximum power point (Pmax), fill factor (FF), and conversion efficiency (η).

Based on these parameters, the BC cell sorting instrument can accurately calculate the actual conversion efficiency of each cell and conduct preliminary grading accordingly. For example, cells with an efficiency of 24% or higher may be classified as Grade A+, while those between 22% and 24% may be classified as Grade A. IV testing not only provides a direct basis for efficiency grading but also identifies hidden issues in cells, such as excessively high series resistance or excessively low shunt resistance, which can significantly impact the cell's output performance under actual operating conditions.

EL Imaging: Defect Detection and Visual Grading

Electroluminescence (EL) imaging technology is another core function of the BC cell sorting instrument. Its principle involves applying a forward bias to the cell, causing it to emit infrared light, which is captured by a high-sensitivity camera. Uniform luminescence intensity typically corresponds to higher cell quality, while areas with defects will show dark spots, cracks, or uneven brightness.

In the BC cell sorting instrument, EL imaging can effectively identify various defects that affect efficiency, such as micro-cracks, broken grids, fragments, uneven doping, and edge leakage. These defects not only cause local current losses but also reduce overall conversion efficiency. Using artificial intelligence algorithms, the system can automatically analyze EL images, quantify the type, area, and location of defects, and correlate them with efficiency data to further refine the grading results. For example, even if two cells have similar IV test efficiencies, the one with micro-cracks identified in the EL image will be downgraded, as such defects may lead to cell failure in subsequent processes.

Collaborative Analysis and Intelligent Grading Strategy

The sophistication of the BC cell sorting instrument lies in its deep integration of IV curve and EL imaging technologies, forming a multi-dimensional grading strategy. IV testing provides quantitative electrical performance data, while EL imaging provides qualitative visual evidence. The combination of the two significantly enhances the accuracy of grading.

For example, if a BC cell shows high efficiency in IV testing but exhibits dark areas at the edges in the EL image, indicating possible edge leakage or cutting damage, the sorting instrument will combine the two types of data to classify it as a Grade B product—"efficiency compliant but with risks." Conversely, if a cell exhibits excellent IV parameters and a uniformly bright EL image, it will be classified as top-grade A+.

This collaborative analysis relies not only on the high precision of hardware but also on the support of intelligent algorithms. Modern BC cell sorting instruments are typically equipped with machine learning models that continuously optimize grading standards based on historical data, making the sorting results increasingly aligned with the needs of practical application scenarios.

Technical Value and Industry Significance

By achieving efficiency grading through IV curves and EL imaging, the BC cell sorting instrument significantly enhances the quality management level of BC cell production. On the one hand, it ensures the performance reliability of every cell leaving the factory, meeting the consistency requirements of downstream module manufacturers for high-efficiency cells. On the other hand, through refined grading, companies can maximize the utilization value of cells, reduce resource waste, and improve economic efficiency.

For Yaohua Laser, deepening the technology of BC cell sorting instruments is not only a market demand but also an important mission to promote the industry's development toward higher quality and reliability. In the era of global carbon neutrality goals, only through technological innovation and precision manufacturing can we continuously empower the photovoltaic industry and inject lasting momentum into the future of clean energy.
