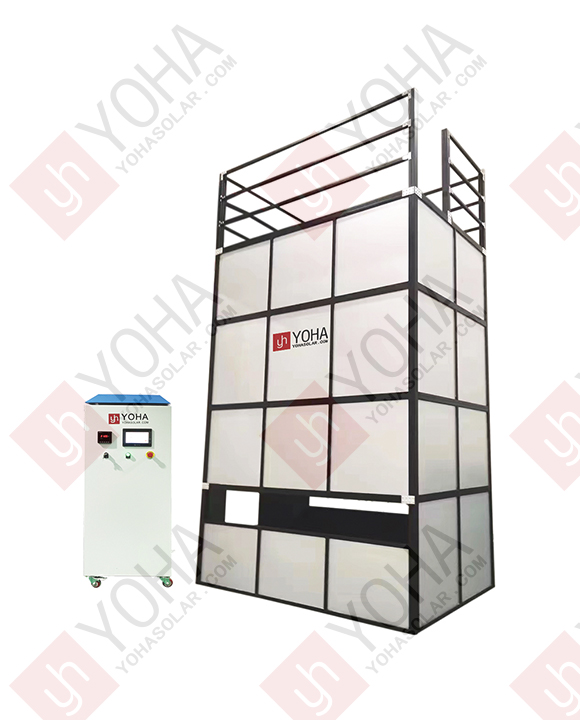

Upper Lighting Solar Panel IV Tester
The Upper Lighting Solar Panel IV Tester is a professional device that non-destructively measures the current-voltage (IV) characteristic curve of solar panels or modules under Standard Test Conditions (STC) by illuminating them with simulated sunlight from above. It accurately acquires core performance parameters such as maximum power point (Pmax), open-circuit voltage (Voc), short-circuit current (Isc), fill factor (FF), and conversion efficiency. It is primarily used for quality control, product sorting, and performance evaluation.
Product Features
Top Illumination, Realistic Simulation: Features an overhead lighting design where the light source illuminates the module from above, more realistically simulating sunlight incidence scenarios (especially for framed, double-glass, or modules at specific installation angles), ensuring test conditions are highly consistent with real-world application environments.
Precise Measurement, Core Parameters: Non-destructively, rapidly, and accurately measures the complete current-voltage characteristic curve of solar modules under Standard Test Conditions (STC), and precisely calculates key performance parameters such as open-circuit voltage (Voc), short-circuit current (Isc), maximum power point (Pmax), fill factor (FF), and conversion efficiency.
Efficient & Non-Destructive, Safeguards Production: The testing process requires no flipping or moving of the module under test, significantly improving production line inspection efficiency and avoiding potential damage risks associated with handling and flipping during testing. Particularly suitable for high-speed online inspection and quality control on production lines.
Standardized & Reliable, Quality Assurance: Strictly adheres to international photovoltaic testing standards, providing reliable, repeatable, and traceable test data. It is a core device for module power sorting, factory acceptance testing, incoming material verification, and performance evaluation, effectively ensuring product quality and consistency.
Technical Parameters
Model Specification: YHMT-HM-A+A+A+
Light Source: Meets IEC 60904-9:2020 Spectral Requirements (Class A+)
Spectral Range: 300~1200nm
Irradiance: 1000W/m² (200~1200W/m²)
Light Intensity Non-Uniformity: ≤1% (A+)
Light Intensity Instability: ≤0.5% (A+)
Test Result Consistency: ≤0.5%
Electrical Parameter Measurement Error: ≤1%
Single Flash Pulse Width: 10~100ms
Effective Test Area: 2600*1600mm
Power Supply: 220V/50HZ
Equipment Dimensions: 3080×2520×5460mm
Product Applications
PV Module Production & Quality Inspection: Serves as a core end-of-line inspection device for 100% full inspection or sampling testing of solar modules after production, precisely measuring power and other parameters for product power sorting, quality control, and factory certification, ensuring products meet datasheet promises.
Third-Party Testing & Certification: A key device for independent laboratories and certification bodies, used for performance verification, type testing, grid-connection certification, and incoming inspection of PV modules, providing objective, standardized test data reports to endorse product performance and reliability.
Power Plant Construction & O&M Assessment: Used for rapid, non-destructive testing of the actual output power of modules during large-scale PV power plant acceptance, pre-installation sampling, and operational performance troubleshooting, assessing potential initial light-induced degradation (LID) or defects to safeguard plant energy yield and investment returns.
R&D & Process Improvement: Provides a critical testing tool for PV material suppliers, module manufacturers, universities, and research institutes to evaluate the impact of new cell technologies, encapsulation materials, and production process improvements on final module performance, accelerating technology iteration and product optimization.
