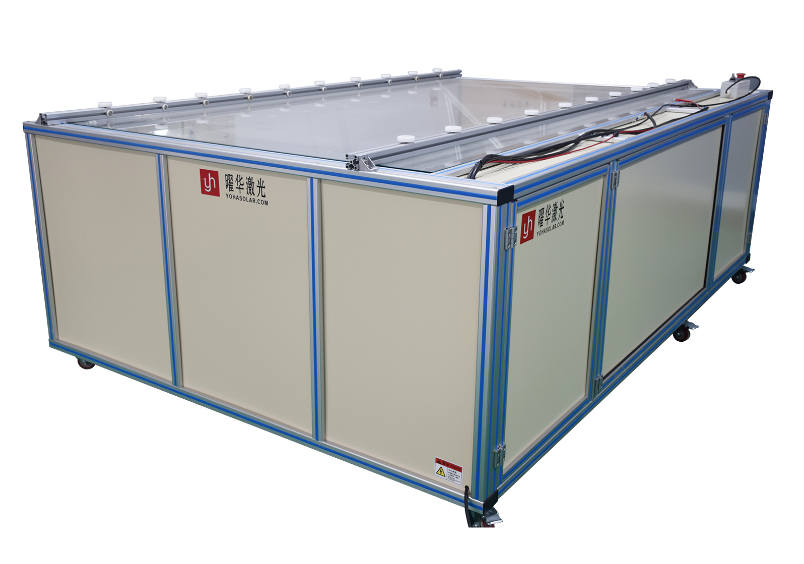

Automatic Solar Module EL Tester

Automatic Solar Module EL Tester

Model: YHEL-S


Applications:

Test and inspect the micro-crack, breakage, broken fingers of the cells and pseudo-soldering of the modules; also applicable to check or find the mismatch of the cells or strings with different power rating.

Equipment Features

- Imported CCD chips ensured superior imaging and longer useful life - High precision of multifunctional control card can be ensured the coordination work of electric control system and image acquisition system

- The solar panel can be automatically transferred, connected and image collected.

- High reliability, high precision, realized seamless connection with the automatic production

lines, reduces labor costs, maximized productivity

- Imported top key components of the system control, motive power transmission, pneumatic drive, sensing and measurement; ensures the equipment work in more stable performance and longer useful life.

Technical Specifications:

Product model

YHEL-S


Resolution

6.1x24 Megapixels


Shooting mode

Single or Multiple camera


Sensitivity

Can detect crack width less than 0.2um


Effective test area

1500*2500mm


Image acquisition time

1~60s can be adjusted


Machine size

2500*2300*1100mm


Power

220V/50Hz(60Hz)


Working environment temperature

-10~40℃


SNR

>56dB


Weight

500kg

Test parameters

Target, Gain, Time, Gamma, Contrast, Data wide


Include

Cabinet(Include infrared camera)+Computer + Software
